Linen/Polyester

Linen and Kevlar (Aramid) are the prime raw materials being used for the manufacture of the garniture tapes. Depending upon the machine speeds, texture of the paper and the operating conditions, we offer different types of the garniture tapes. Especially for the filter makers we have special kind of tapes with a surface coat, a special kind of material which improves coefficient of friction between the paper and tape.

All of our garniture tapes come out of the factory, after a multifold quality control check-up to ensure a consistent performance of the product. We can manufacture garniture tapes with lengths from 1200 to 6000 mm, widths from 7 mm to 100 mm and thickness from 0.5 mm to 1.0 mm.

Code	Tape thickness (measured at 5 kg.)	Temp. resistance	Coating on paper side	Breaking strength (at 21 mm width)	Elongation (21 mm tape width at 300 N load)	Application

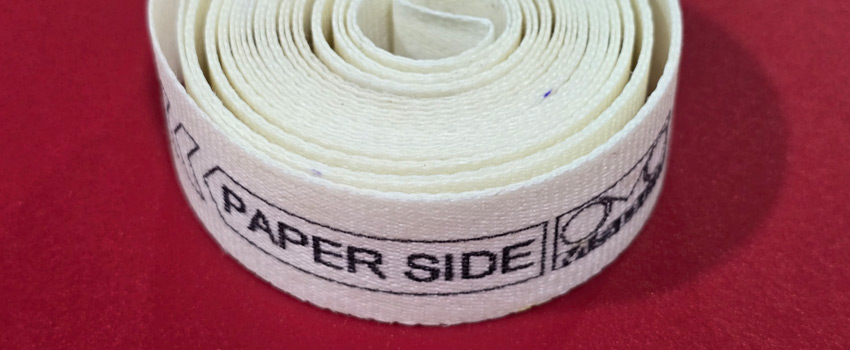

LKP066.12	0.52 mm	Upto 145°C	NA	3250 N	0.24%	Cigarette making

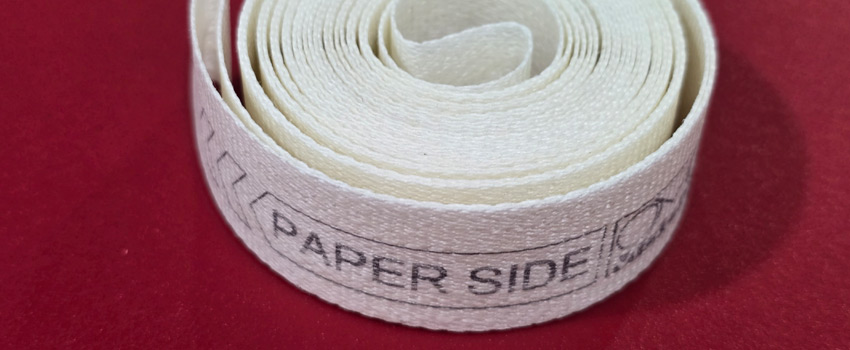

LKP066.36	0.5 mm	Upto 145°C	NA	3250 N	0.24%	Cigarette making

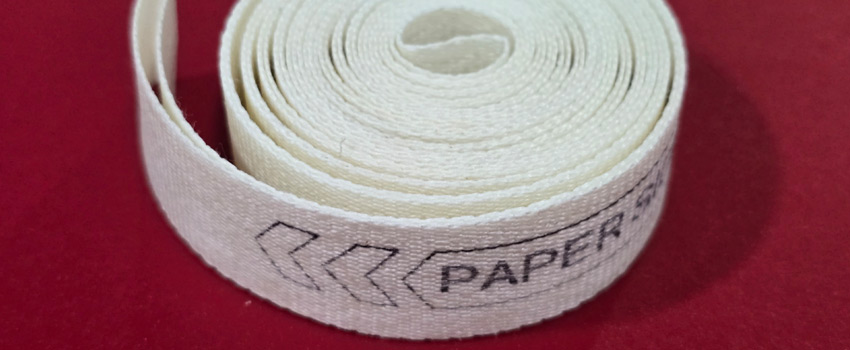

LKP033	0.63 mm	Upto 145°C	NA	3100 N	0.25%	Cigarette/filter making

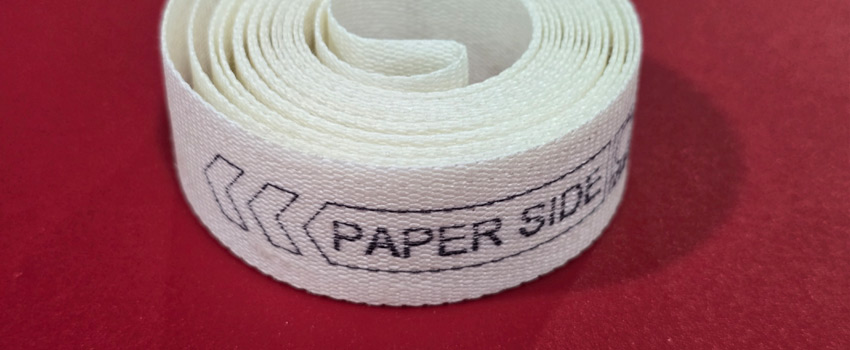

LKP033.12	0.57 mm	Upto 145°C	NA	3100 N	0.25%	Cigarette making

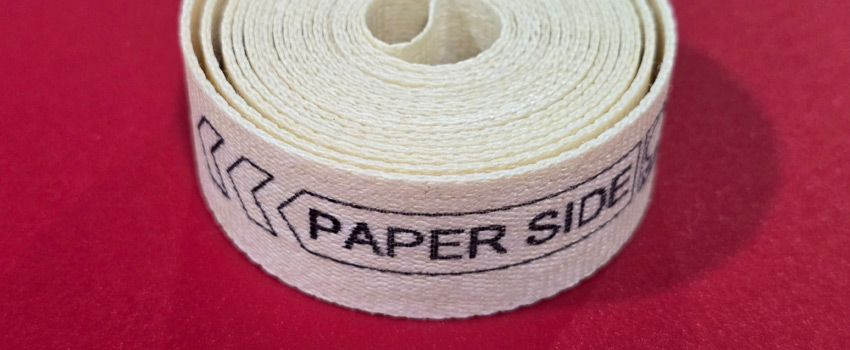

LKP066	0.5 mm	Upto 145°C	NA	3300 N	0.21%	Cigarette making

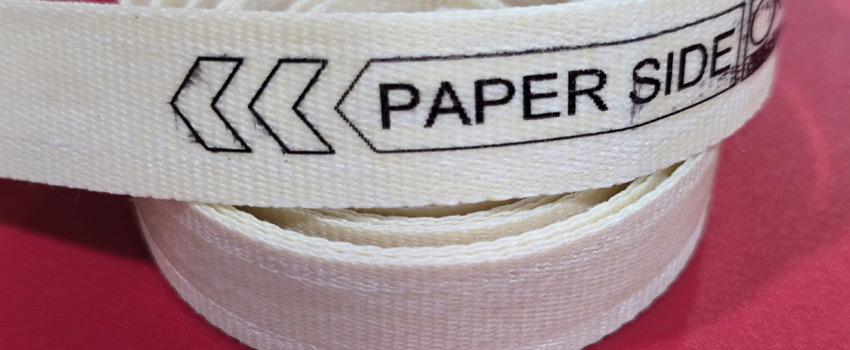

LKP066C	0.60 mm	Upto 145°C	Centre/full coated	3300 N	0.21%	Filter making

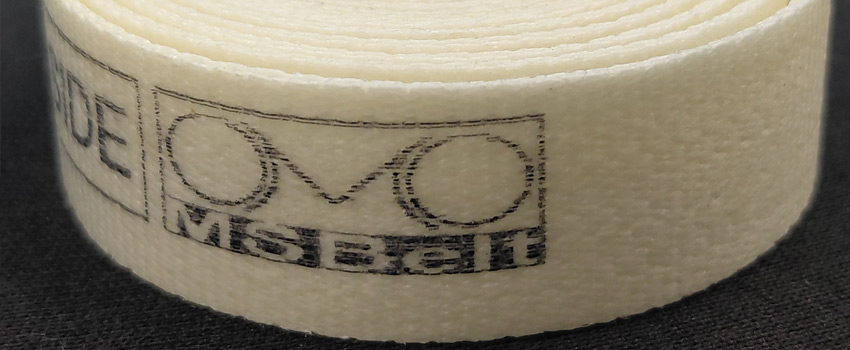

LKP066.36C	0.60 mm	Upto 145°C	Centre/full coated	3250 N	0.24%	Filter making

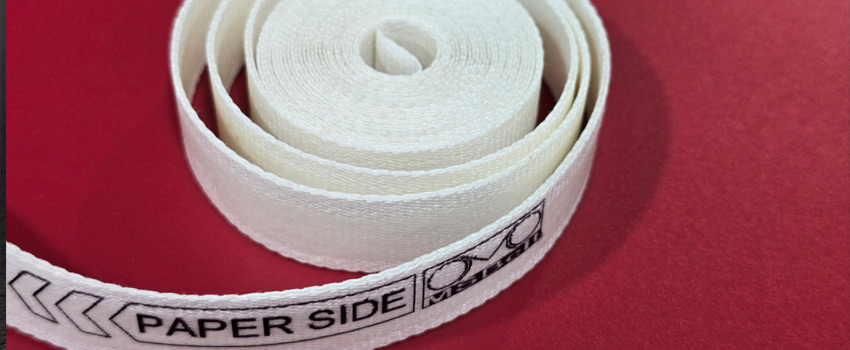

MLP066C	0.69 mm	Upto 145°C	Centre/full coated	3150 N	0.24%	Filter making

All the above are general sizes and for any special sizes, please contact: info@msbelt.com

All the Garniture tapes are available in both Kevlar & Linen
